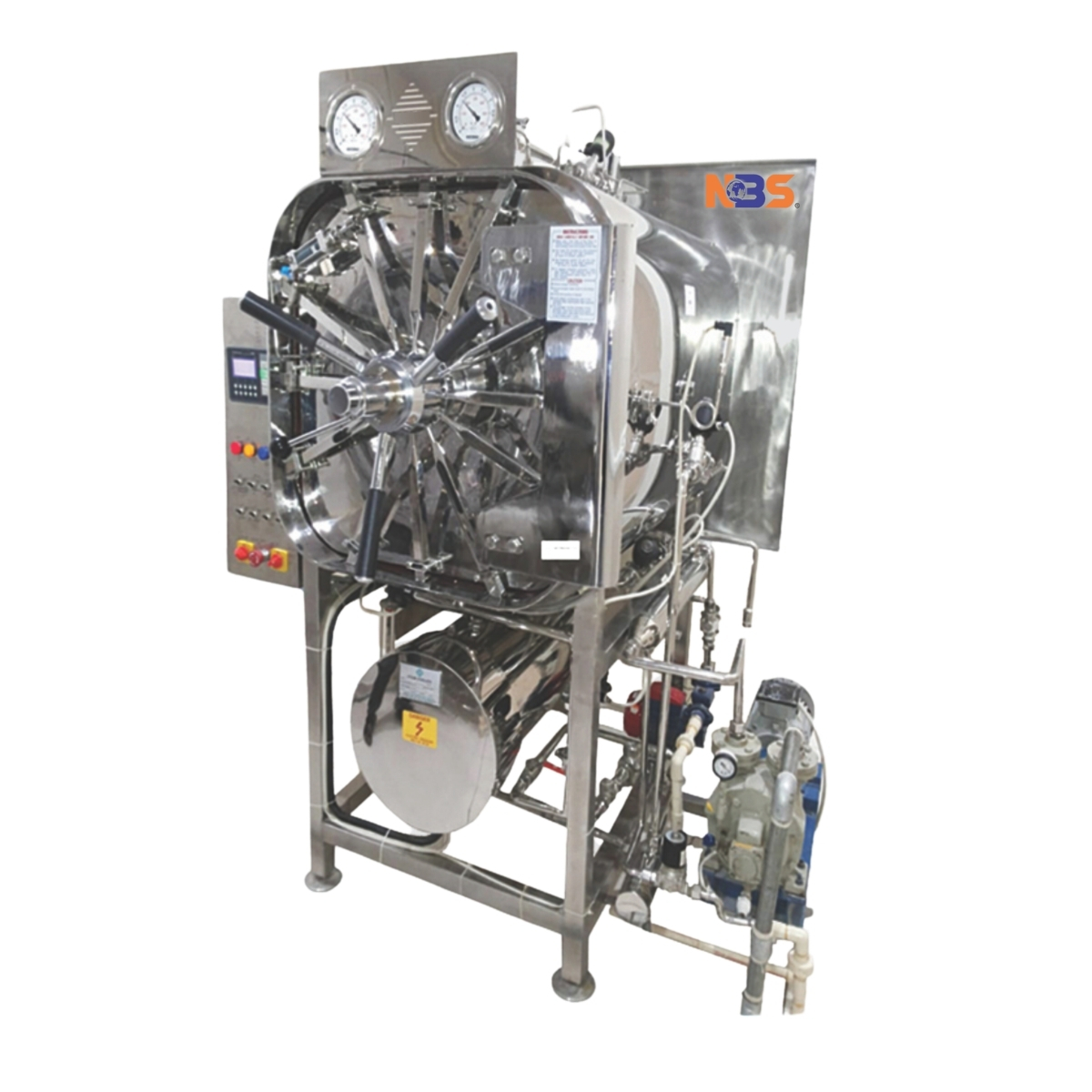

The Horizontal Rectangular Autoclave is a high-performance steam sterilizer designed to deliver reliable, efficient, and safe sterilization for hospitals, laboratories, pharmaceutical facilities, and research institutions. Engineered for maximum thermodynamic efficiency, it operates at a standard sterilization cycle of 121°C (1.2 kg/cm²) and offers an optional High-Speed Flash Cycle at 134°C (2.1 kg/cm²), significantly reducing sterilization time for urgent applications.
Built with a robust AISI 304/316 stainless steel chamber, AISI 304 stainless steel jacket, and AISI 304 stainless steel door, the autoclave features precision argon arc welding to ensure a leak-proof and durable construction. The corrosion-resistant support stand enhances long-term reliability and service life.
The sterilizer works on the downward air displacement principle, ensuring efficient removal of air while minimizing steam and water consumption for optimal sterilization performance. A built-in steam trap effectively removes condensate and residual air, enabling faster achievement of sterilization temperatures. An optional steam generator feed water pump provides uninterrupted operation for continuous workflow.
For superior drying performance, a powerful ejector integrated into the multi-port operating valve circulates air within the chamber to achieve effective vacuum drying with minimal heat loss. A centralized control system simplifies operation, while dual exhaust speed options (fast and slow) and easy-to-read pressure gauges provide enhanced control and monitoring throughout the sterilization cycle.
Key Highlights
- Standard sterilization at 121°C (1.2 kg/cm²)
- Optional Flash Sterilization at 134°C (2.1 kg/cm²)
- AISI 304/316 stainless steel chamber construction
- Downward air displacement for efficient sterilization
- Leak-proof argon arc welded chamber and jacket
- Centralized control with multi-port/solenoid valve
- Powerful ejector for efficient vacuum drying
- Steam trap for rapid air and condensate removal
- Dual exhaust speeds (Fast & Slow)
- Easy-to-read chamber and jacket pressure gauges
- Corrosion-resistant support stand for extended service life
