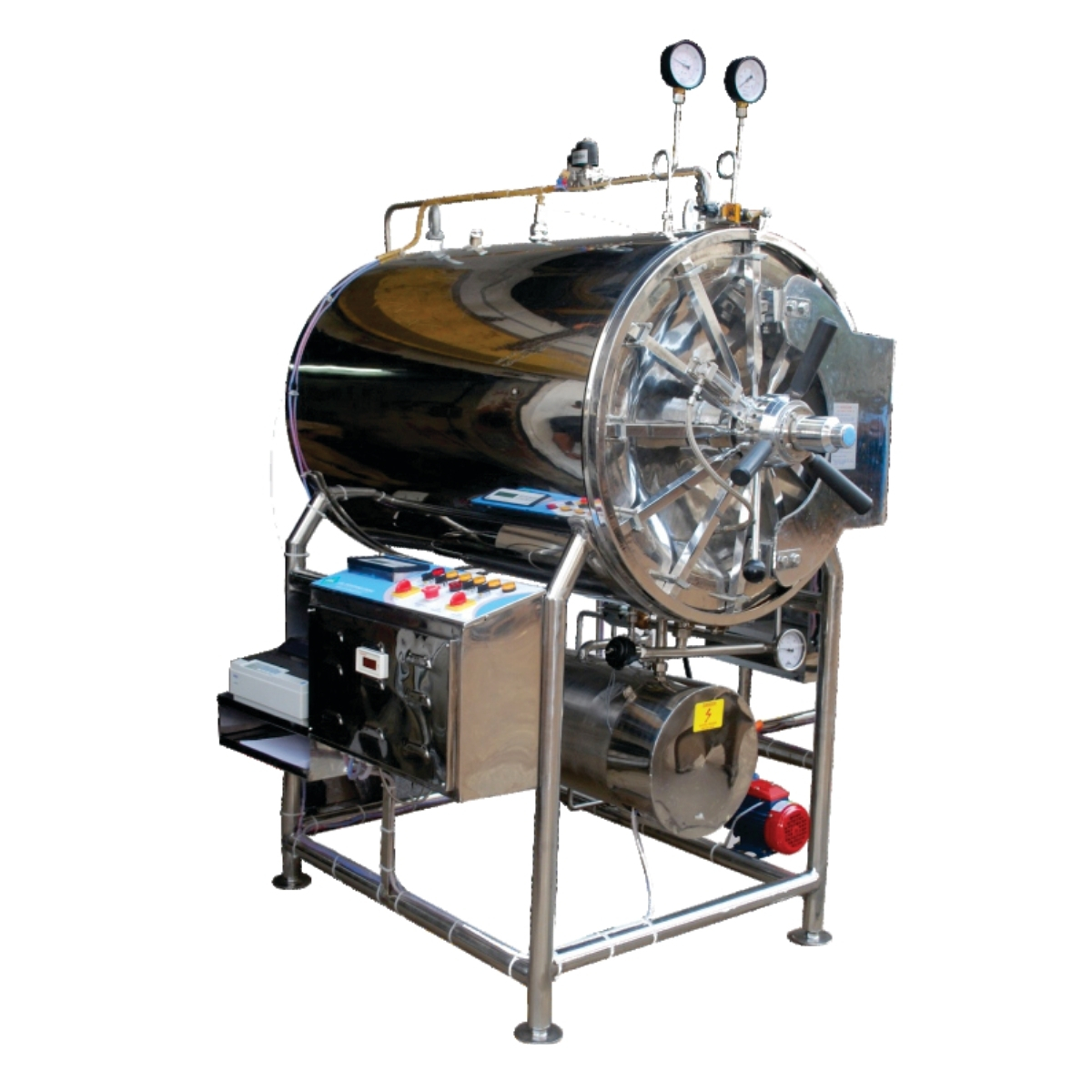

The High Speed / High Pressure Automatic Autoclave / Sterilizer is an advanced steam sterilization system designed for rapid, reliable, and efficient sterilization in hospitals, laboratories, pharmaceutical industries, research centers, and healthcare facilities. Engineered for high-performance operation, it offers a standard sterilization cycle at 121°C (1.2 kg/cm²) and an optional High-Speed Flash Cycle at 134°C (2.1 kg/cm²), significantly reducing sterilization time without compromising effectiveness.
Manufactured with a durable AISI 304/316 stainless steel chamber, AISI 304 stainless steel jacket, and AISI 304 stainless steel door, the sterilizer is built for long-lasting performance. The precision argon-welded chamber and jacket provide a leak-proof structure, while the corrosion-resistant stand enhances durability in demanding environments.
Operating on the downward air displacement principle, the autoclave ensures efficient removal of air with minimal steam and water consumption, delivering optimum sterilization. An integrated steam trap removes condensate and trapped air efficiently, allowing the chamber to reach sterilization temperatures more quickly. An optional steam generator feed water pump enables continuous, uninterrupted operation.
The centralized control system features a multi-port operating valve or solenoid valve for complete cycle control, along with dual exhaust speed options for flexible operation. A powerful ejector provides effective vacuum drying with minimal heat loss, creating a safer and more comfortable working environment.
Designed with comprehensive safety features, the sterilizer includes a self-locking safety door, heat-resistant silicone door gasket, low water protection system, pressure switches (electric models), vacuum breaker/dryer, safety valves, and a hydraulically tested pressure vessel rated at 2.5 times the working pressure, ensuring dependable and safe operation throughout every sterilization cycle.
Key Features
- Standard sterilization at 121°C (1.2 kg/cm²)
- Optional High-Speed Flash Sterilization at 134°C (2.1 kg/cm²)
- Automatic operation with centralized control system
- AISI 304/316 stainless steel chamber with leak-proof argon welding
- Downward air displacement for efficient sterilization
- Steam trap for rapid air and condensate removal
- Powerful vacuum drying system with minimal heat loss
- Multi-port operating valve or solenoid valve control
- Dual exhaust speeds (Fast & Slow)
- Easy-to-read chamber and jacket pressure gauges
- Self-locking safety door for operator protection
- Heat-resistant silicone door gasket
- Low water protection system for electric heaters
- Pressure switches for energy-efficient operation (electric models)
- Optional digital temperature indicators/controllers
- Vacuum breaker/dryer and jacket safety valve
- Hydraulically tested at 2.5× the working pressure for enhanced safety
- Corrosion-resistant support stand for long service life
